S27 – technical specification
A 27m truck on 3.5 tonne – Drive on a standard UK car driving license
boom specification:
- Working height 27m (88ft)
- Outreach limit 16.5m (52ft)
- Load capacity 230kg (507lbs)
vehicle chassis:
- Mercedes Sprinter
- 3500kg GVW
travel dimensions: – ALL TBC
- Stowed height 3.2m (10ft 5″)
- Stowed width 2.42m (7ft 1″)
- Stowed length 7.65m (25ft 1″)
IPAF 1B license required to hire this platform on a self drive basis
Download Spec
Sheet
Hire from as little as £249 a day
*Please note jacking width specifications are measured to the centre of the leg only and do not include the jacking plate

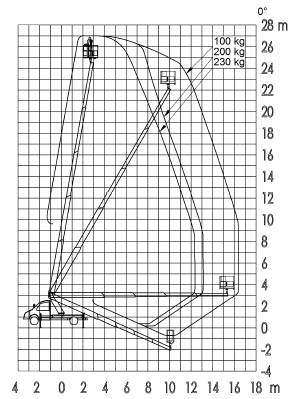

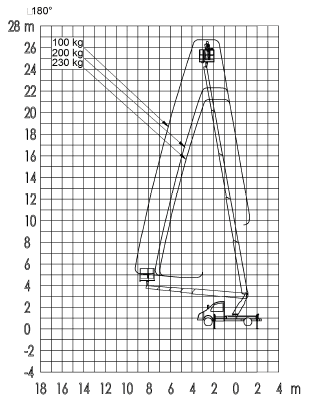

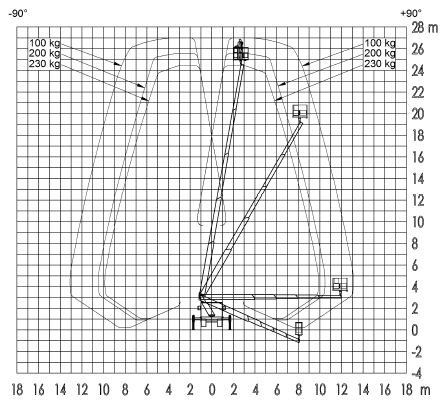

Click diagrams above to enlarge
All specs serve as a guideline only and are correct at time of going live.
Smart reserves the right to change the specification without any prior notice.
